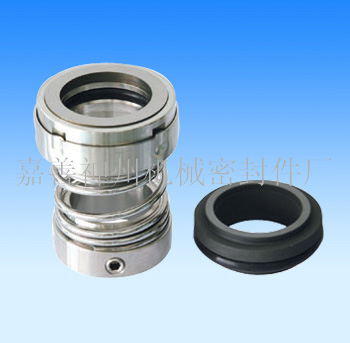

Products Name:GB 103 type mechanical seal

Products Details:The series is a typical single spring mechanical seal, installed in the single end and drive the sealing ring spring, with DIN24960, ISO3069, GB6556, is a widely used standard non balanced mechanical seal, allowing the use of various materials and surface combination, to meet a wide range of industrial requirements.

Operating parameters:
The pressure in the seal cavity: 0~1.5MPa seal cavity temperature: -30 ~180 DEG C, line speed: less than 3000r/min, medium: water, oil, moderate corrosive medium
