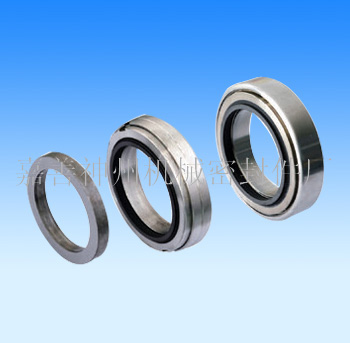

Products Name:Model H8/H10 mechanical seal

Products Details:Single ended / unbalanced / arbitrary rotation / multi spring structure, SHH8/H10 series mechanical seal, axial size is very short, it can replace skeleton oil seal, and is widely used in high-speed equipment.

Operating parameters:
Specification: 15 ~ 100mm, pressure = 2.5Mpa, temperature: -20 to 250 DEG C, line speed: less than 35m/s, axial momentum: + 0.5mm

Operating parameters:
Sealing face: graphite, silicon carbide, tungsten carbide, auxiliary sealing: Ding Jingjiao, fluorine rubber, ethylene propylene rubber, perfluoro glue; metal component: stainless steel
